LED Matrix
WS2812B LED matrix, in the size you choose.
SKU 02001
An accessory for compatible ConnectorX hardware. Controller sold separately. Get a controller and LEDs together.
Overview

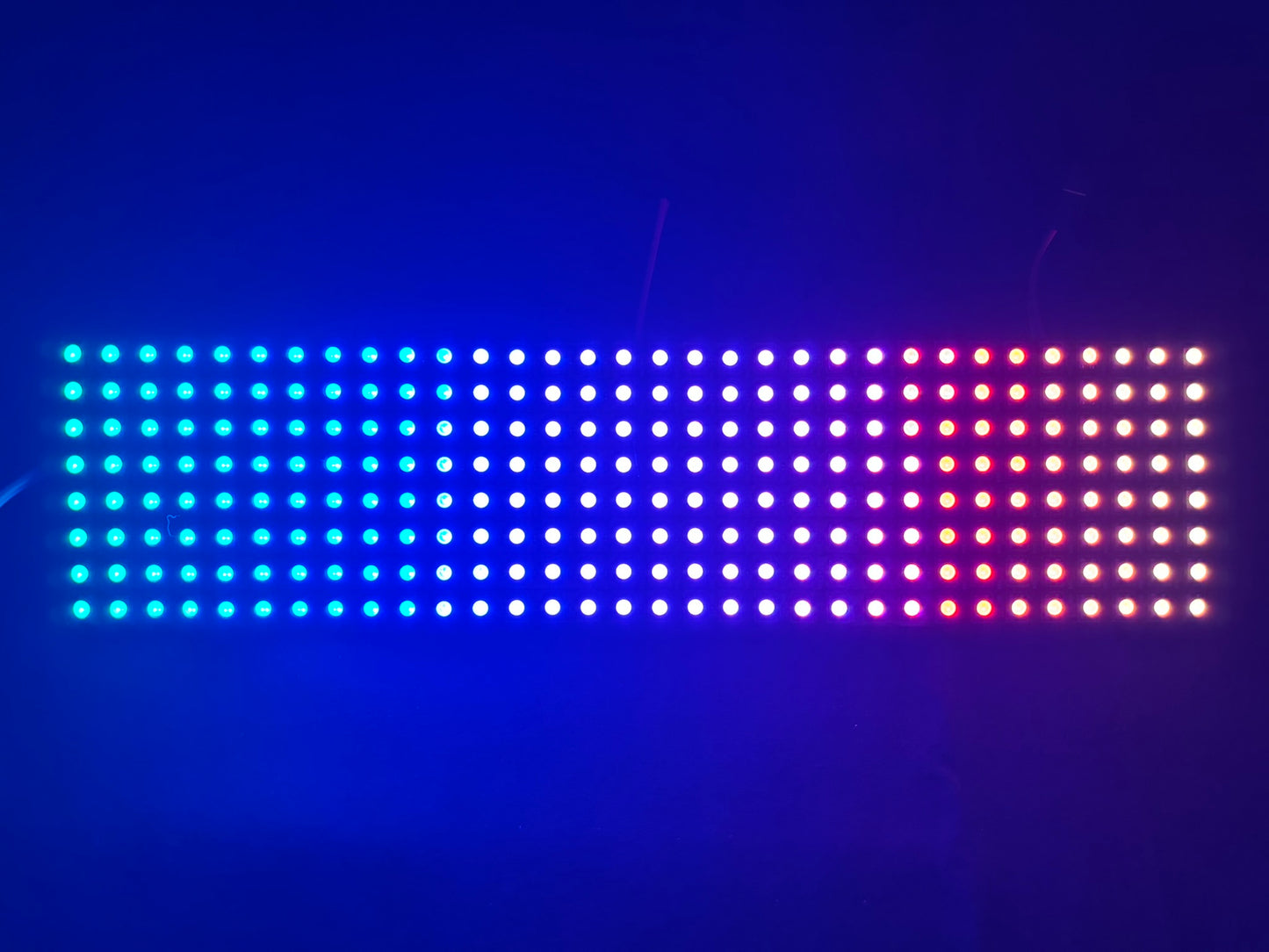

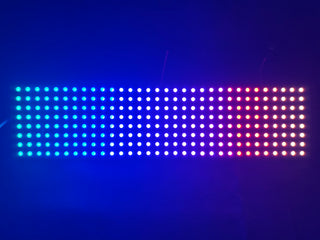

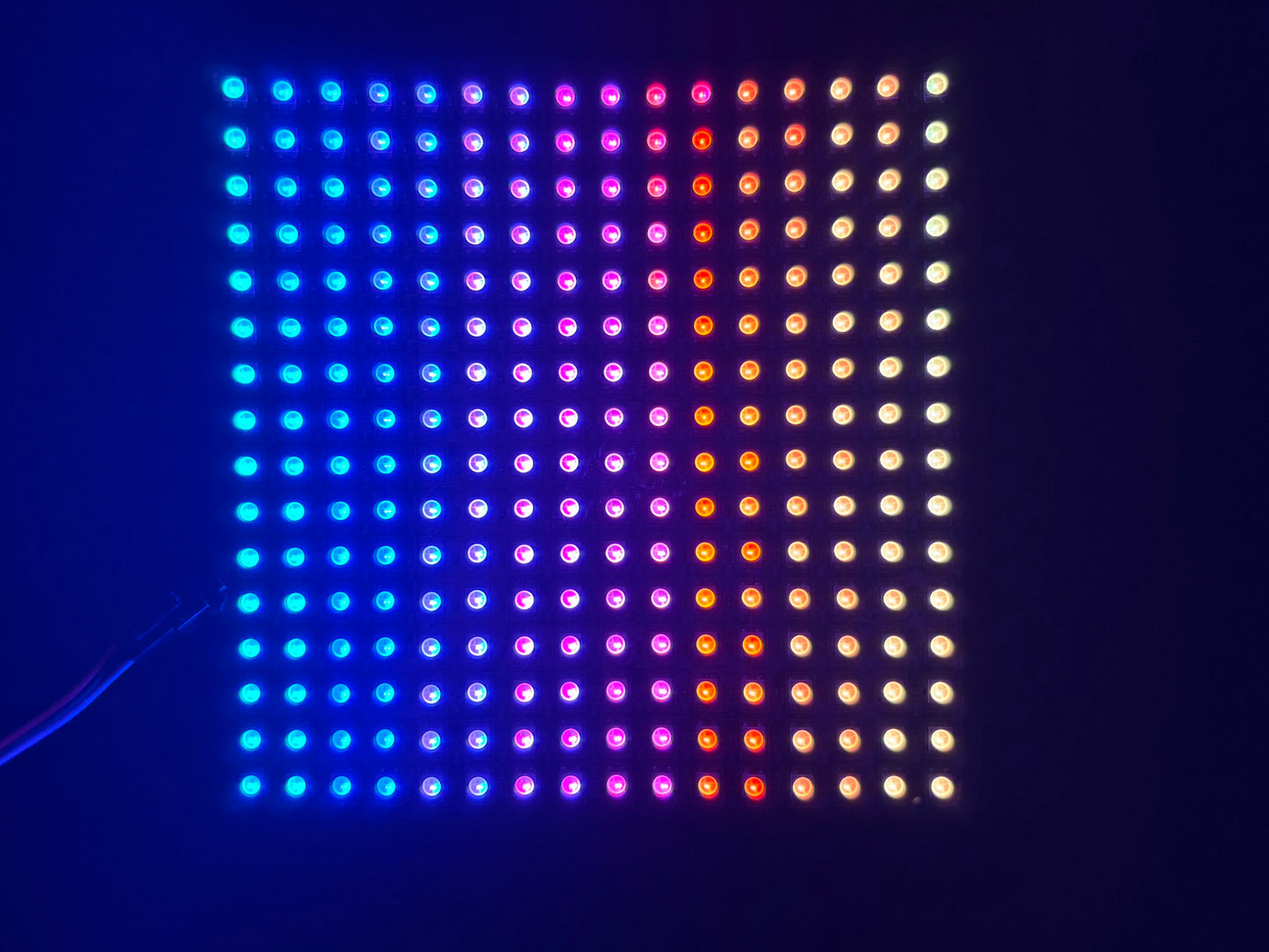

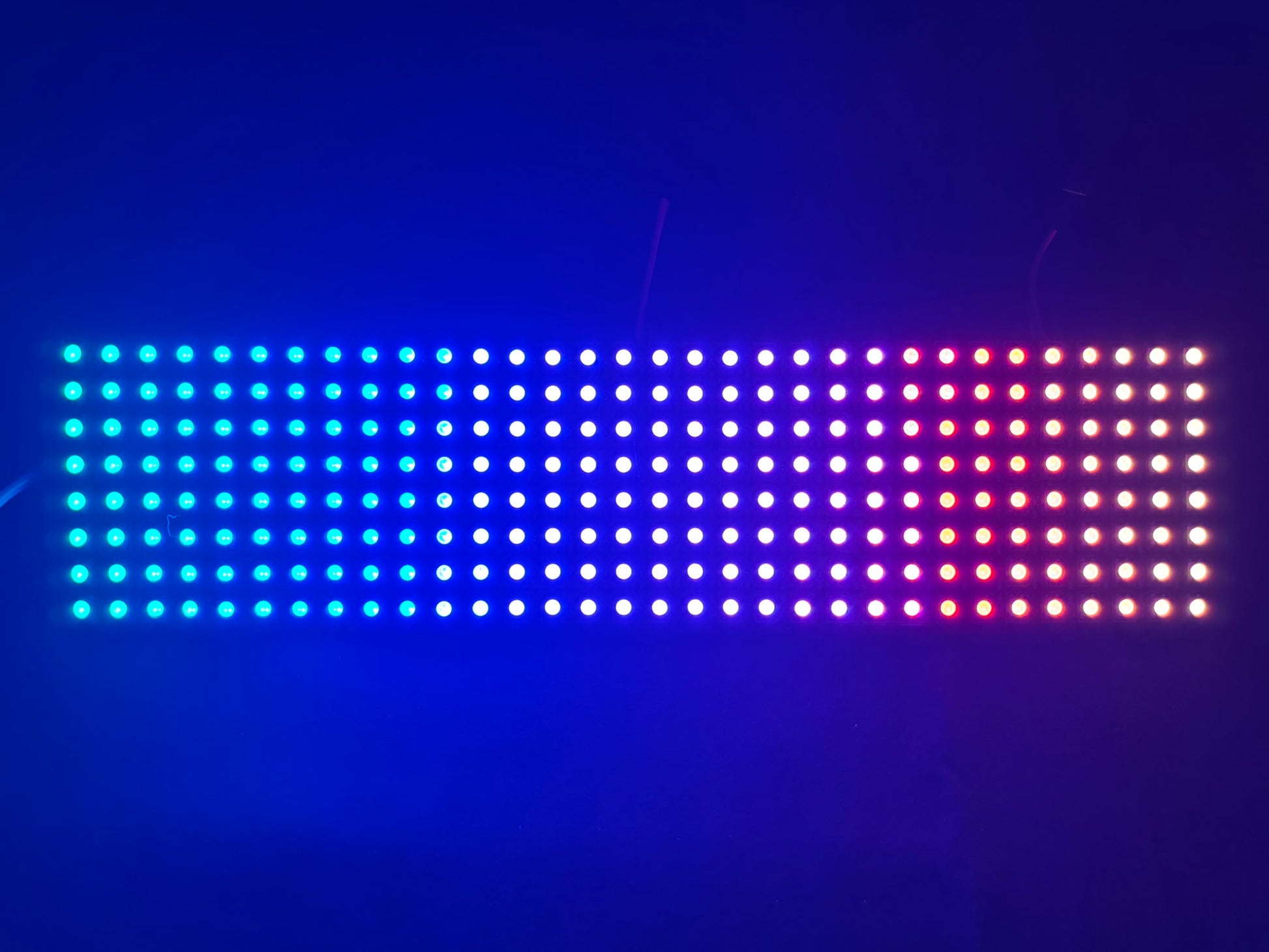

This WS2812 LED Matrix makes it easy to display images, text, and animations. With JST-SM connectors on both ends, it seamlessly connects to your ConnectorX's LED channel(s) or to other strips.
WS2812B matrix panel
Graphics and scrolling text
Addressable RGB matrix for image sequences, status text, and GIF-based animations on ConnectorX hardware.
Match your Lumyn Studio zone
Create a matrix zone with the same rows and columns as this panel so Motion Editor previews and on-device playback line up with the physical grid.
Power from the board
Wire DATA, +5 V, and GND to ConnectorX. The controller regulator supplies 5 V; do not use a separate matrix power supply.
Specifications
- ProtocolWS2812B addressable
- Panel sizeSee variant (rows x columns)
- Compatible withConnectorX and ConnectorX Animate
- CableSold separately: connectorx-led-cable
- LED count limit320 LEDs per channel; size zone to panel
Questions
Will this work with my ConnectorX?
Yes, on any ConnectorX or ConnectorX Animate board driving WS2812B matrices. You need a 3-pin JST-SM adapter cable if you do not already have one.
How do I configure the matrix in Lumyn Studio?
Add a matrix zone with the same dimensions as this panel. Set origin and layout so image sequences and matrix text map to the correct pixels.
