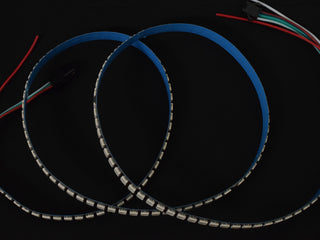

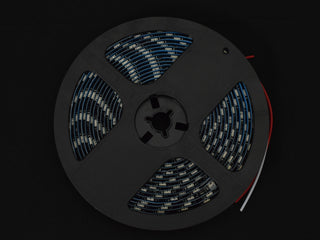

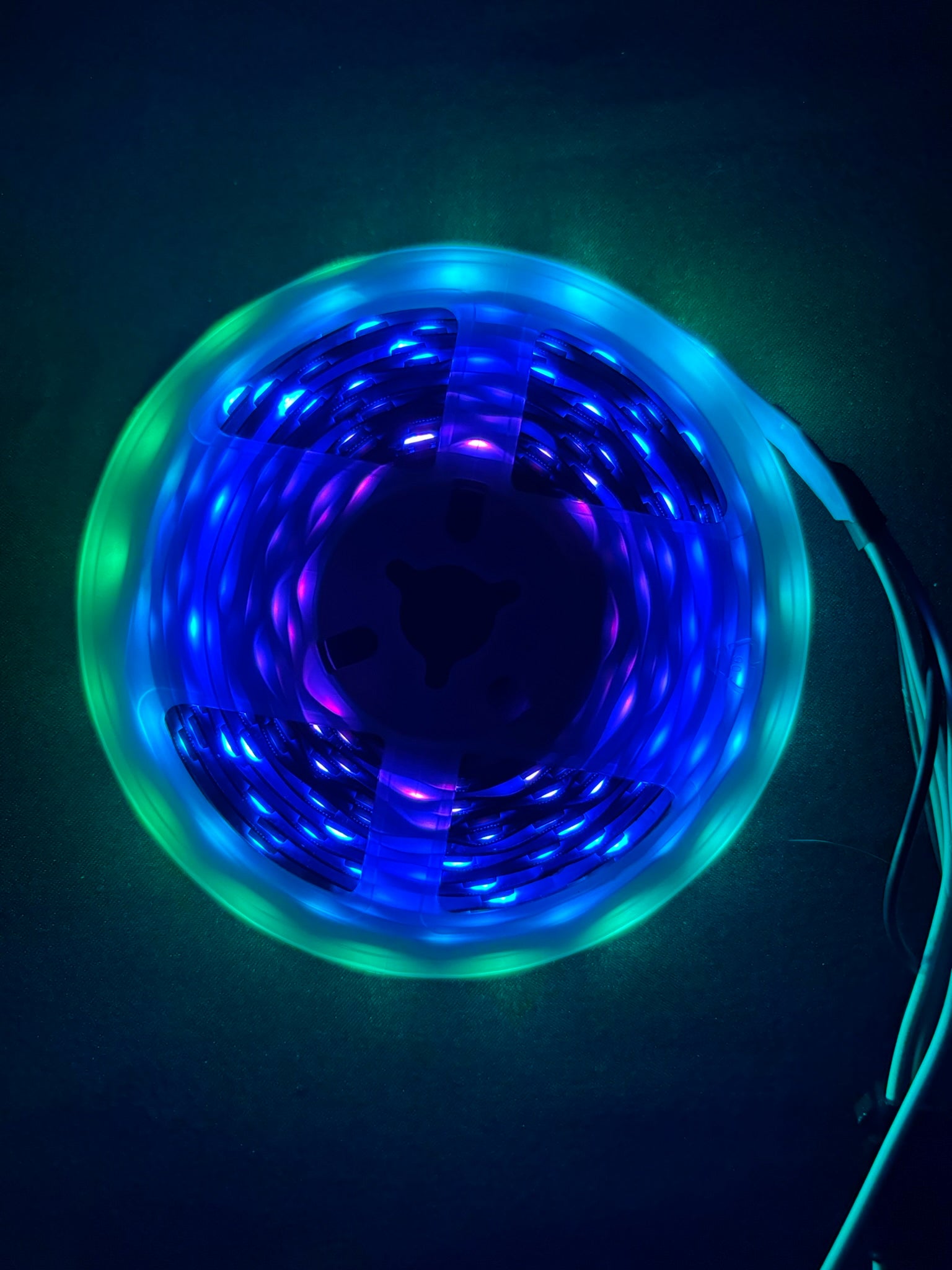

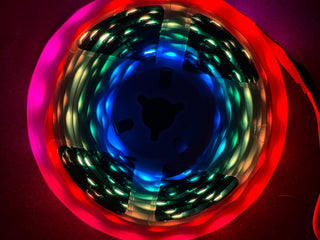

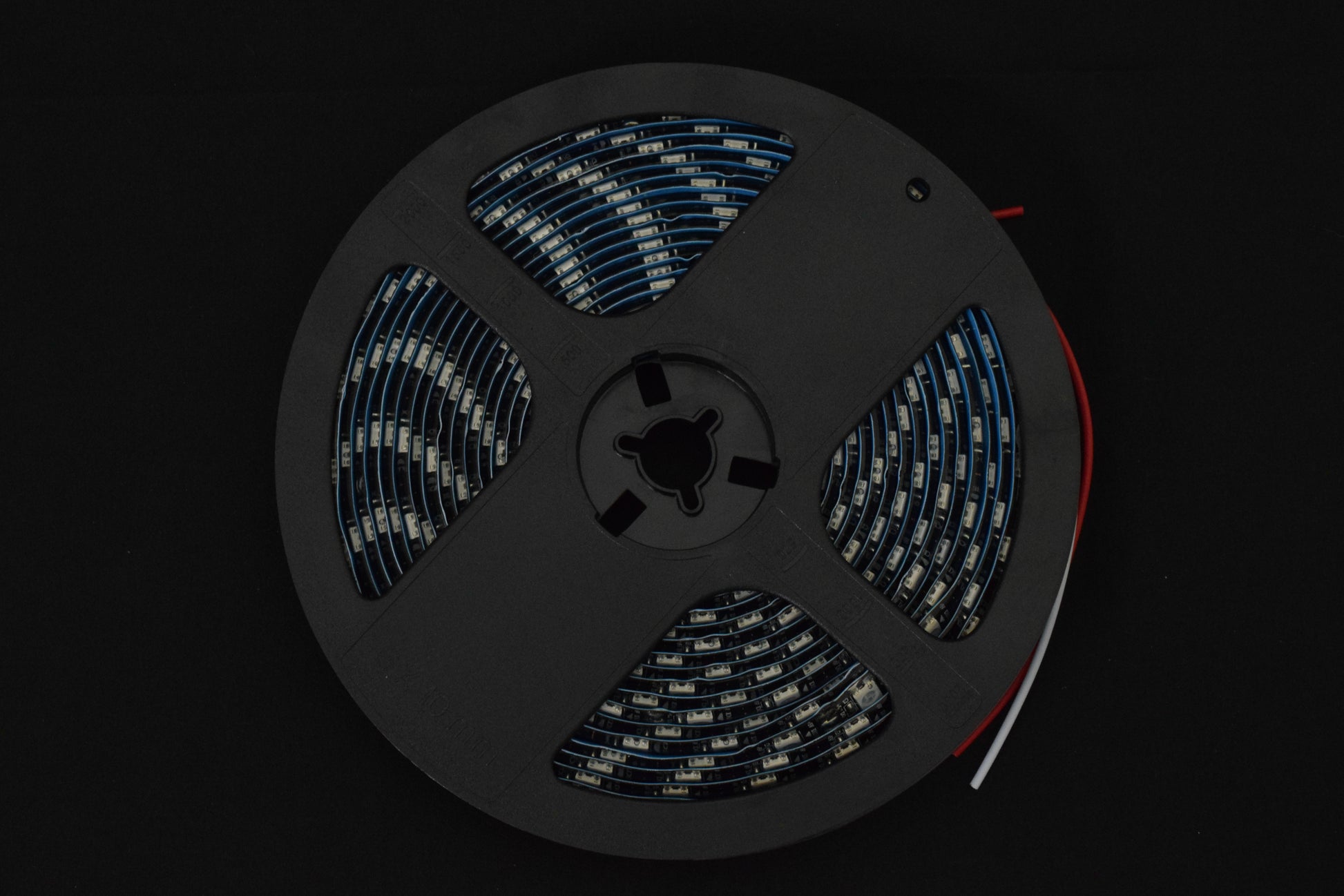

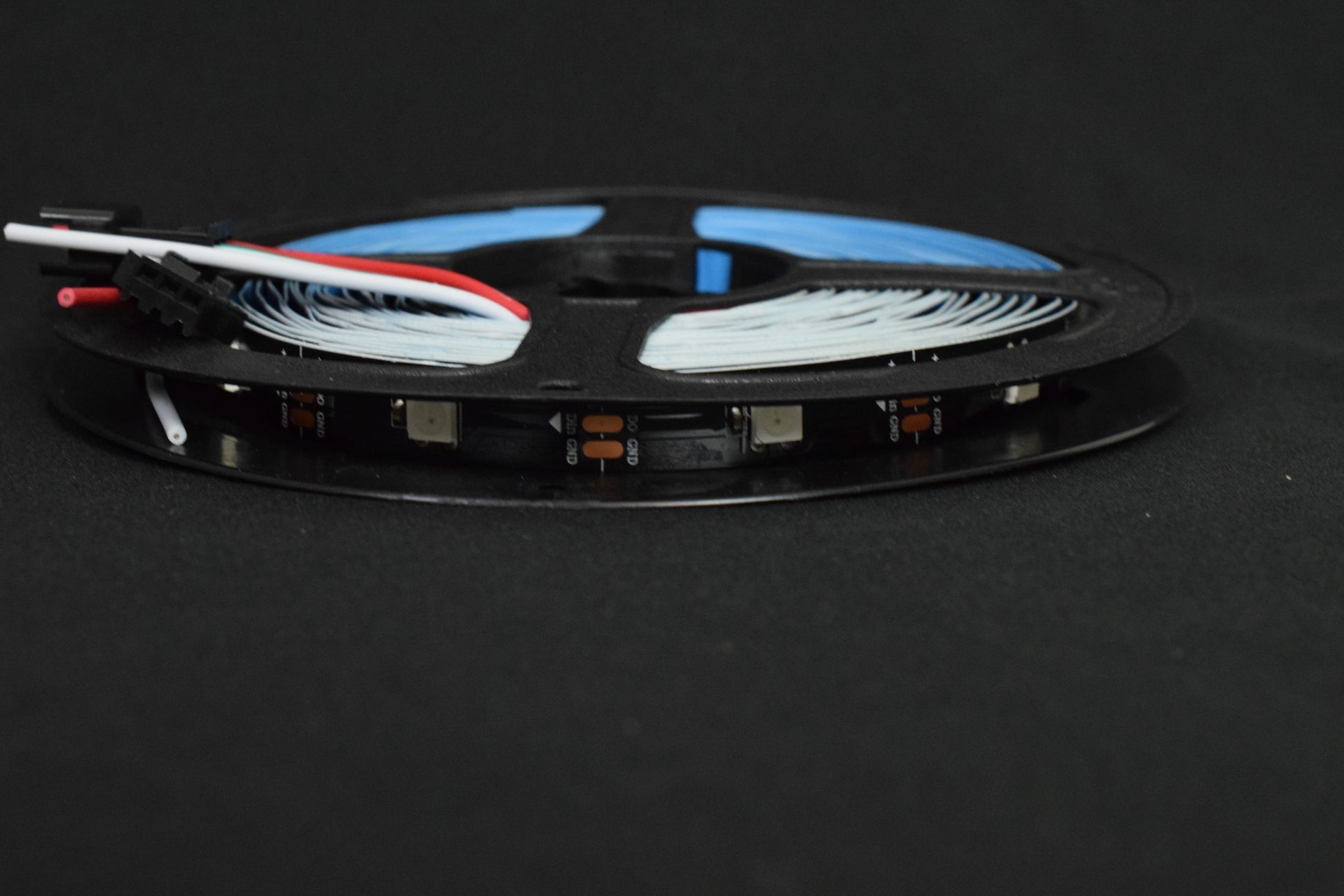

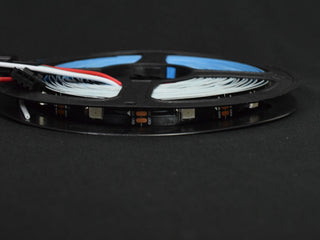

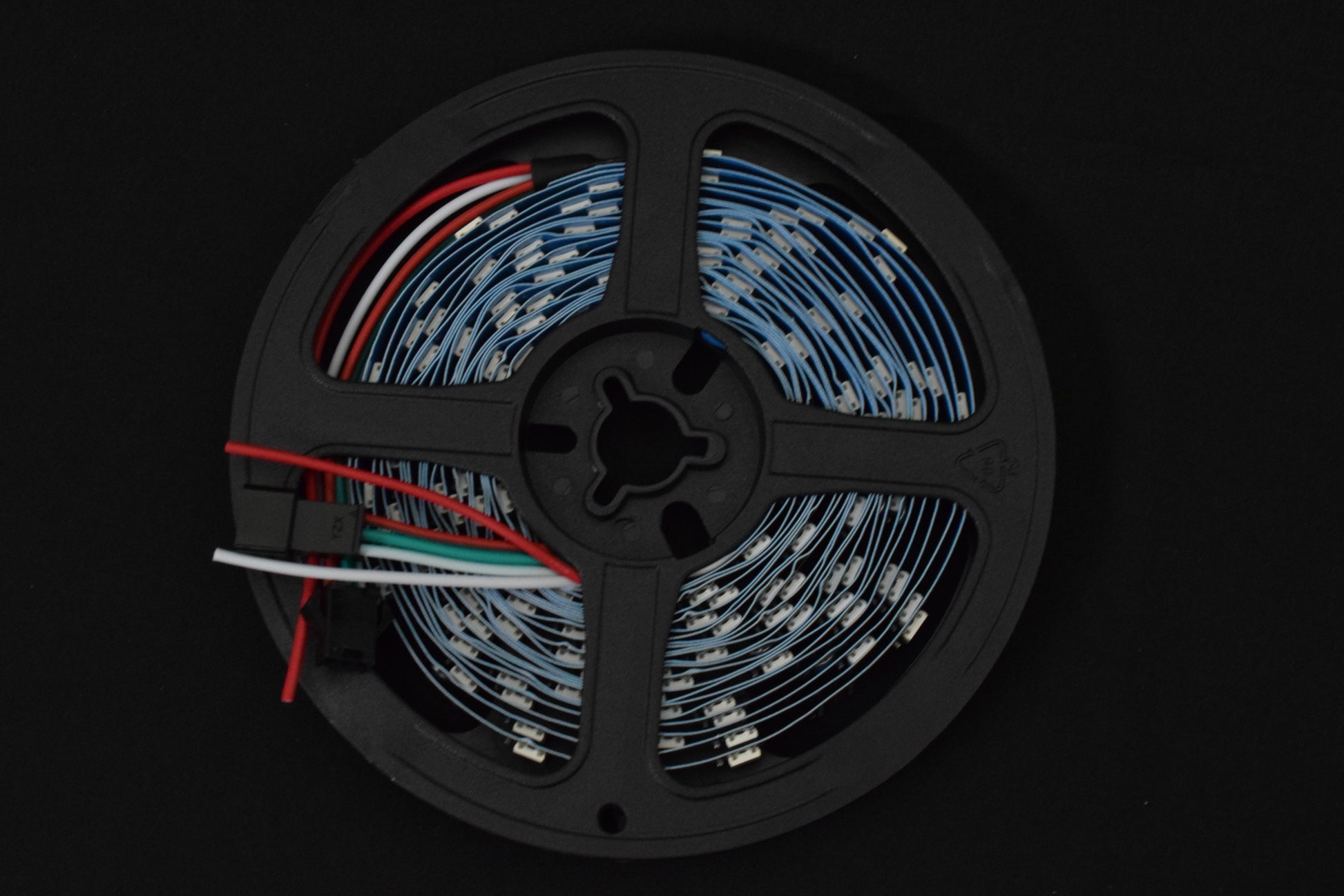

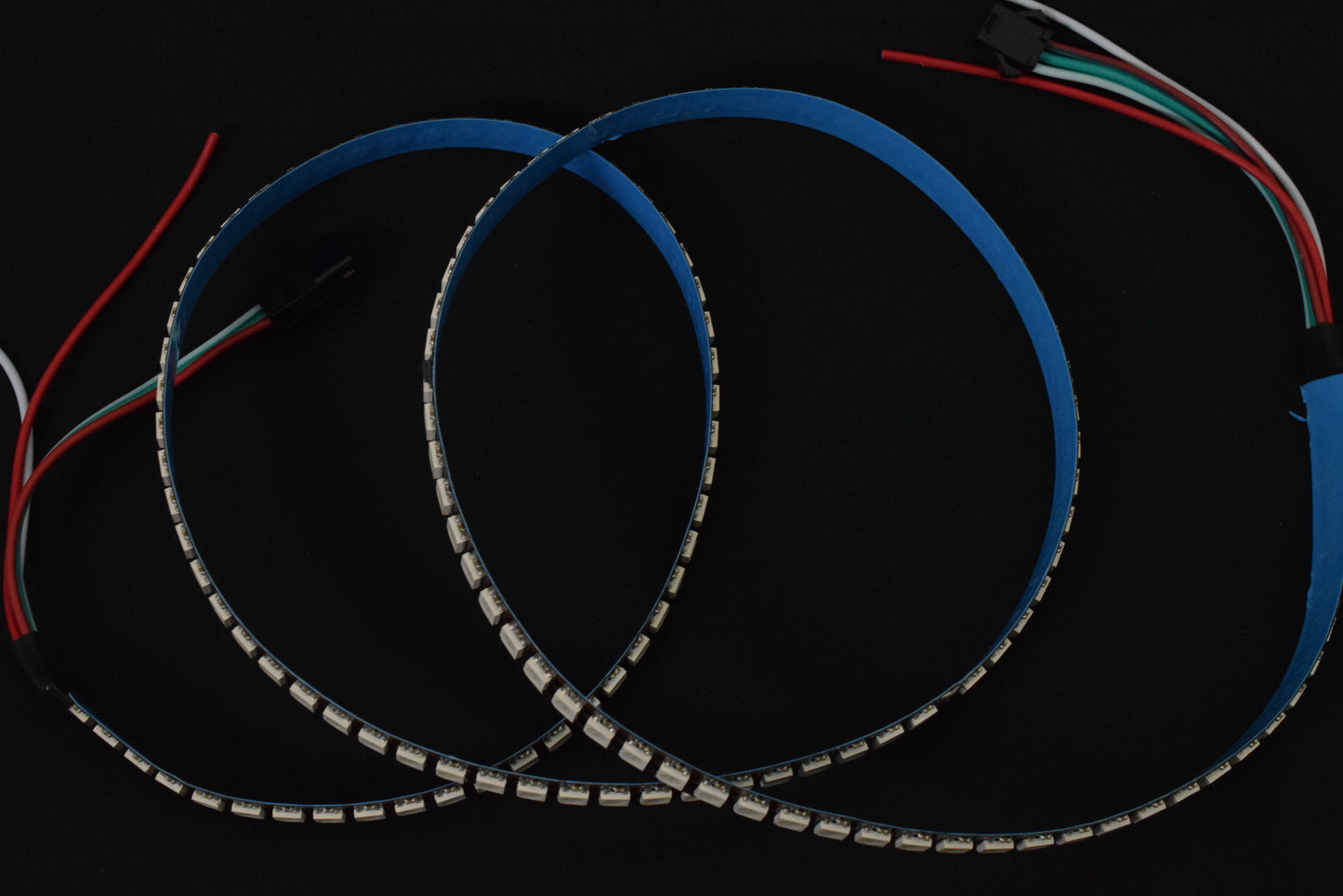

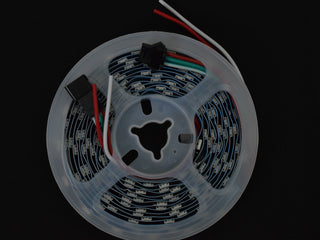

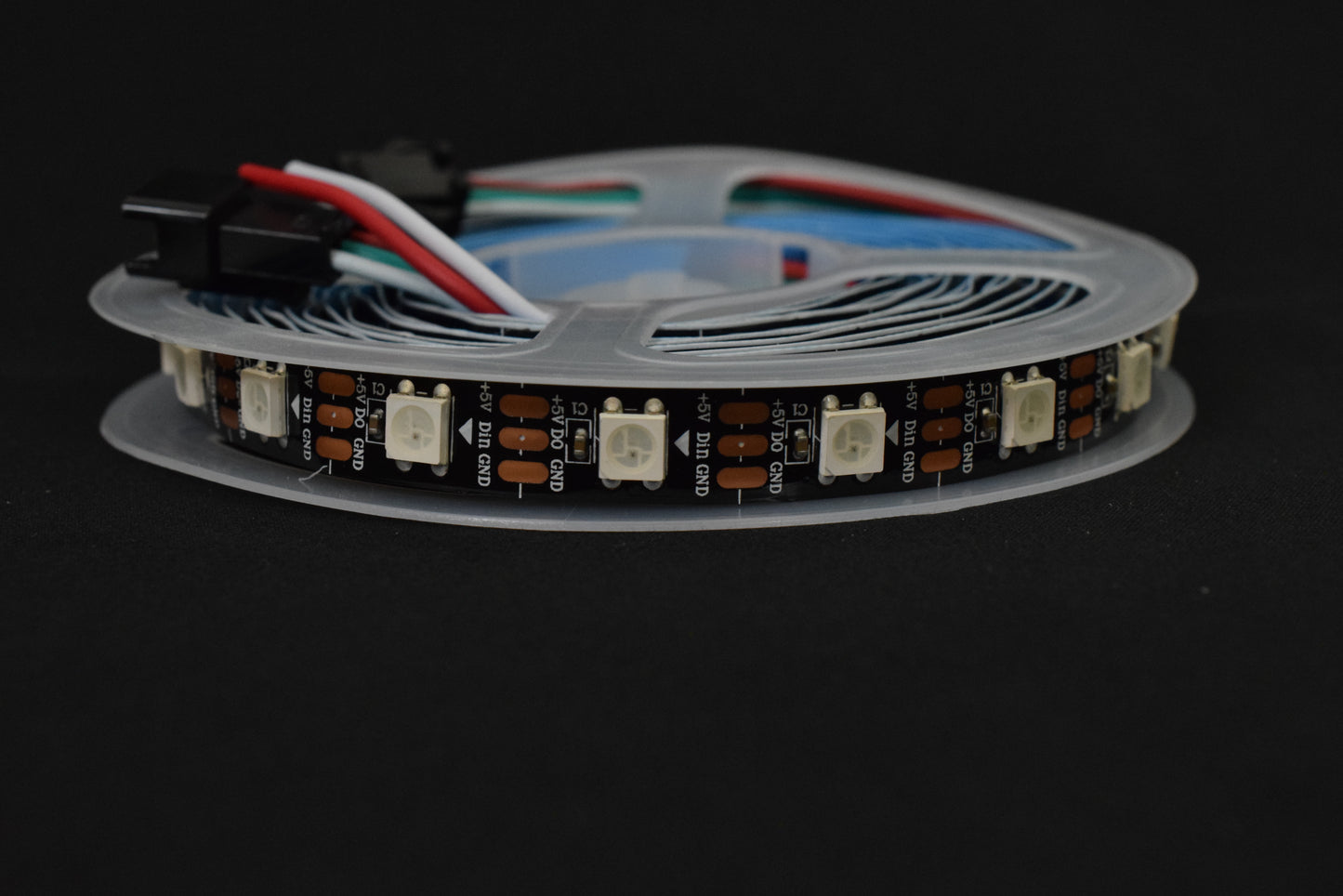

LED Strip
SKU 03042
Overview

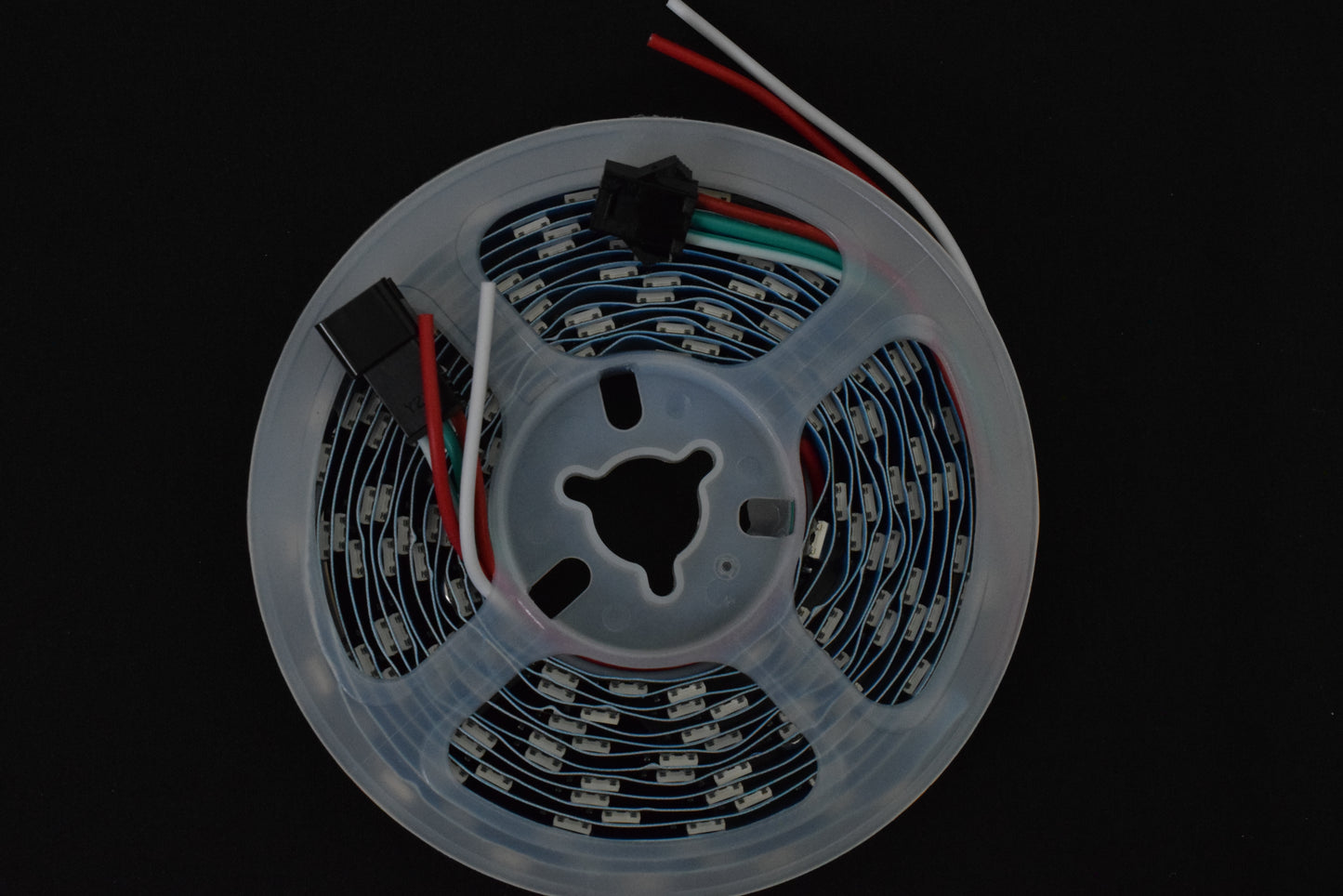

This high-quality LED strip connects to your ConnectorX's LED port(s) via its JST-SM Male connector, ensuring easy installation and a reliable connection.

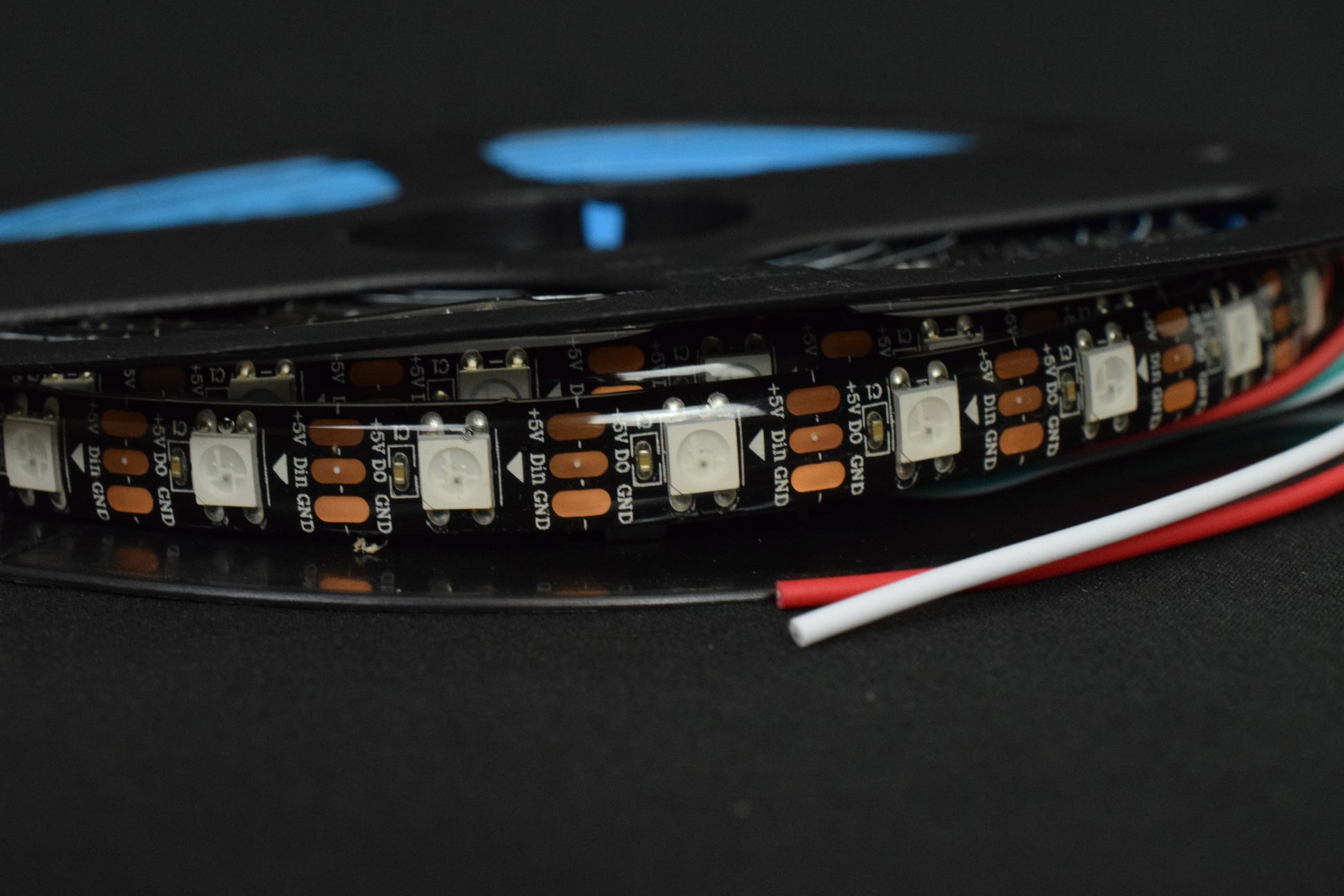

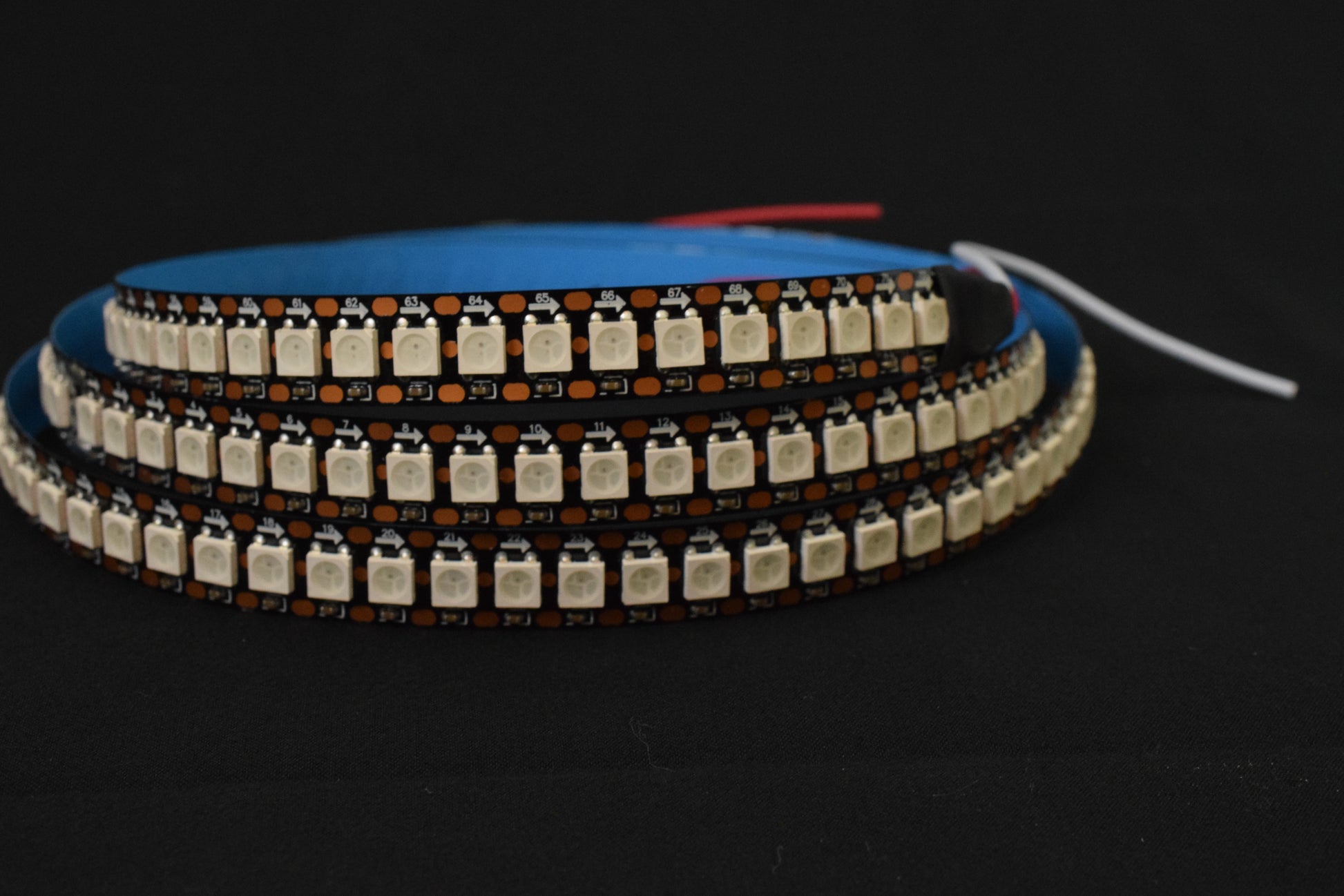

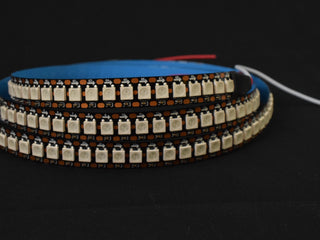

WS2812B LED strip
Per-LED color control

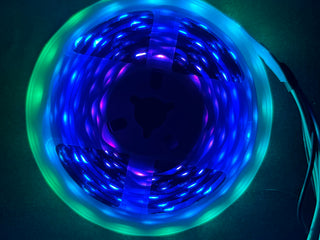

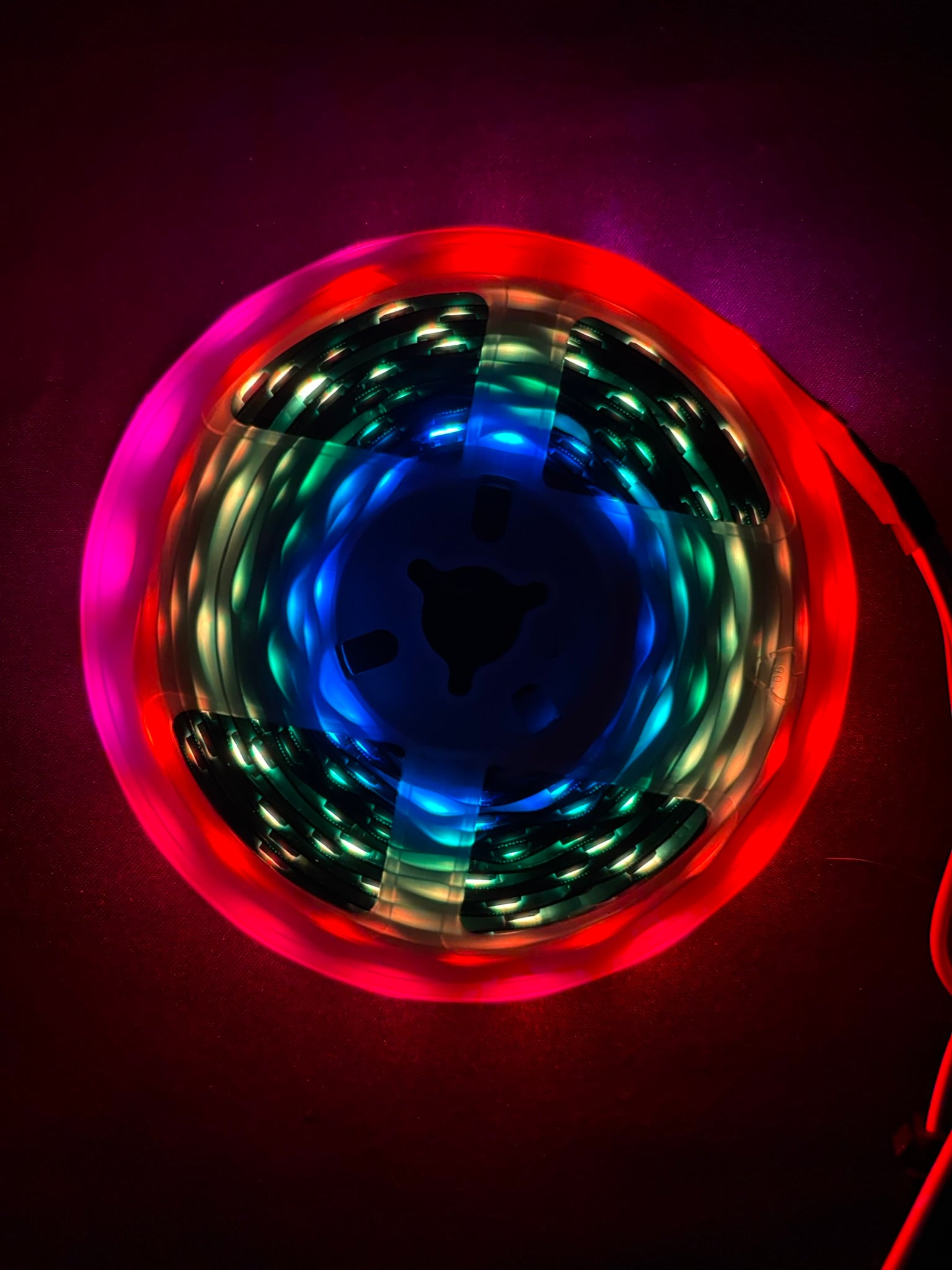

Addressable strip for robot lighting zones, animation sequences, and status patterns on ConnectorX hardware.
Plan zones to length
ConnectorX allows up to 320 LEDs per channel. Pick a strip length that fits your zone layout, or use Animate for multiple channels.
Power from the board
Connect DATA, +5 V, and GND to ConnectorX. The onboard regulator feeds the strip; do not power the strip separately.
Specifications
- Protocol WS2812B addressable
- Length See variant
- Compatible with ConnectorX and ConnectorX Animate
- Cable Sold separately: connectorx-led-cable
Questions
Does this work with REV Blinkin wiring?
No. This is WS2812B addressable strip for ConnectorX DATA/+5 V/GND outputs, not PWM strip for the RIO PWM port.
Do I need a separate cable?
Most teams use the 3-pin JST-SM adapter cable between the board and strip unless your strip already has the matching connector.
