ConnectorX

1 LED channel, up to 320 LEDs, and a 3 A regulator. Connect supported sensors over five interfaces.

$49.99 USD
$49.99 USD
Sale Sold out

SKU 00003

LED channels
1 · up to 320 LEDs
Sensor interfaces
I2C, SPI, UART, digital, analog
Power for LEDs
12 V input → 5 V output

$49.99 without headers, $54.99 with headers. Headers are the pre-soldered pins for plugging in wires.

Works with SystemCore and WPILib 2027 over USB, and with the roboRIO on the 2026 vendordep.

For setup: a USB data cable and Chrome or Edge on a compatible computer. For LED output: a 12 V supply. A FAT32 microSD card stores configuration and assets.

Need LEDs, a cable, and storage? Start with a bundle.

Headers
ConnectorX

Start with a ConnectorX bundle

Choose a strip or a matrix. Both bundles include the controller, an LED cable, and a 32 GB microSD card.

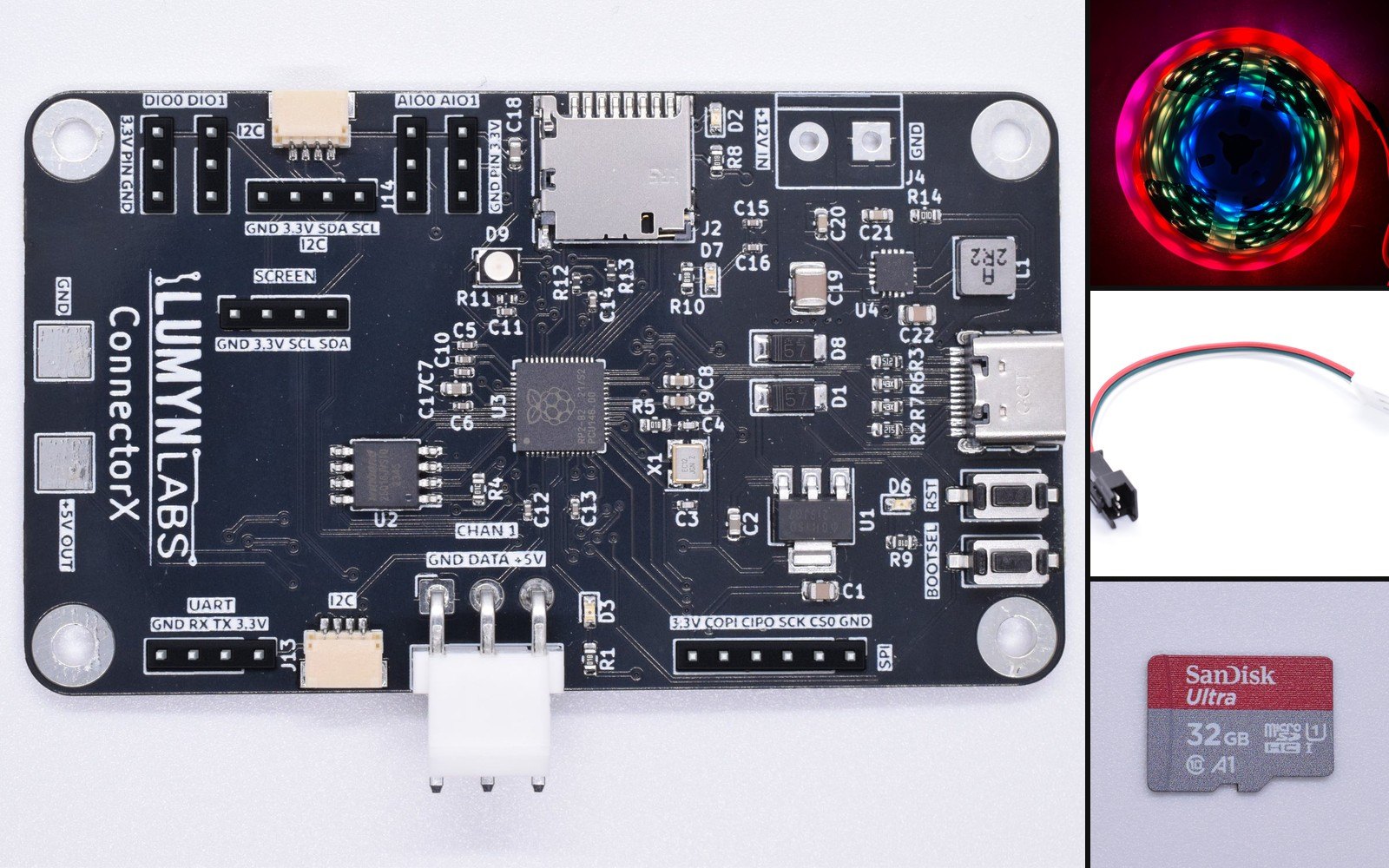

ConnectorX LED Strip Bundle

ConnectorX LED Strip Bundle

ConnectorX, an LED strip, an LED cable and a 32 GB microSD card.

Controller
ConnectorX, headers selectable
LEDs
Strip, length selectable
Also included
LED cable + 32 GB microSD
From $72.99 USD
From $72.99 USD
Choose bundle
ConnectorX LED Matrix Bundle

ConnectorX LED Matrix Bundle

ConnectorX, an LED matrix, an LED cable and a 32 GB microSD card.

Controller
ConnectorX, headers selectable
LEDs
Matrix, dimensions selectable
Also included
LED cable + 32 GB microSD
From $72.46 USD
From $72.46 USD
Choose bundle

One board for LEDs and I/O

WS2812B plus module buses

One LED channel for up to 320 WS2812B LEDs, with I2C, SPI, UART, DIO, and analog for distance sensors, limit switches, and custom peripherals.

USB or UART host connection

Connect over USB for Lumyn Studio and SDKs, or use UART with a configurable baud rate when your project needs serial.

Lumyn Studio setup

Configure zones, modules, and animation sequences in the browser. Use LED Commander to test your strip or matrix animations before calling the API from your project.

37 firmware animations

Fire, Fireworks, Plasma, Digital Rain, and 33 more animations make it easy to add lighting effects without writing any code. Chain steps into sequences, then call them by zone name from the API.

WPILib vendordep

Install the Lumyn Labs vendordep from the WPILib menu in VS Code. Load your Lumyn Studio configuration, register modules, and drive LEDs with the same zone IDs you defined in Lumyn Studio.

DirectLED and custom firmware

Push per-pixel buffers from the API when prebuilt animations are not enough. ConnectorX also supports a custom firmware path for teams that want to own the animation stack.

Modules on the same controller

Modules on the same controller

Register modules in Lumyn Studio with IDs that match your API calls. Built-in support includes VL53L1X time-of-flight distance, digital inputs, and analog inputs. SPI and UART buses are available for custom peripherals.

Module callbacks and LED commands use the same configuration file from Lumyn Studio.

See all features
Lumyn Studio before code

Lumyn Studio before code

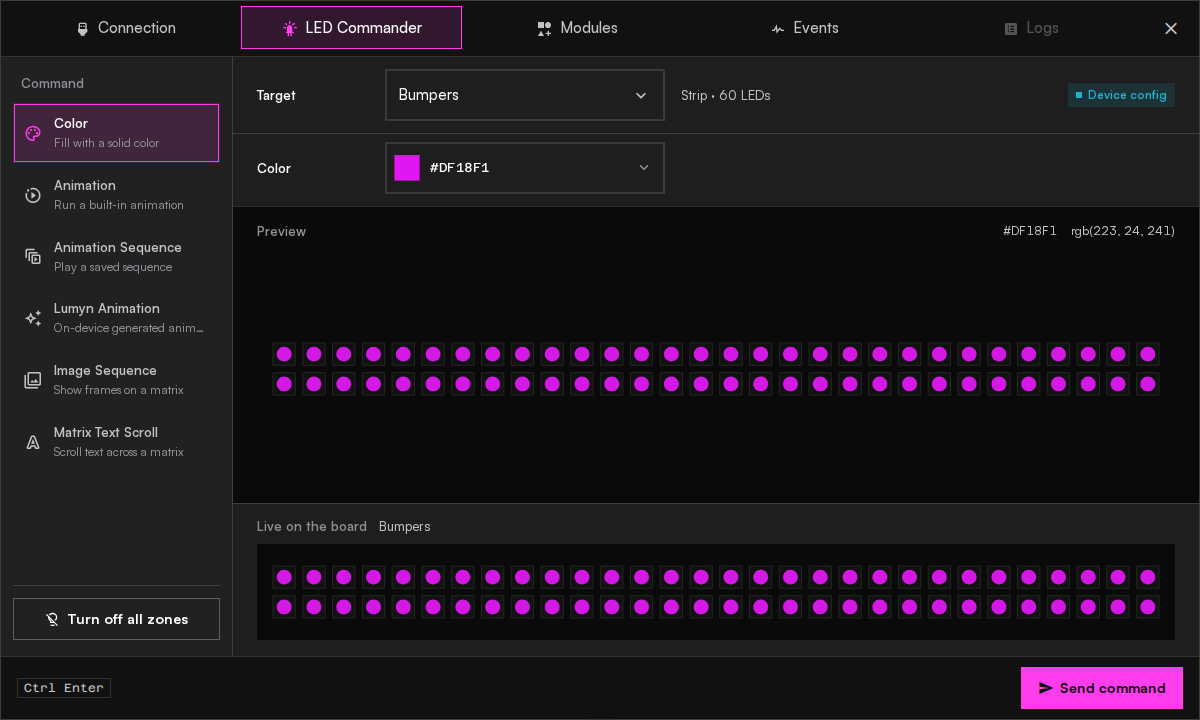

Connect power and USB, open Lumyn Studio, and read the live device configuration. LED Commander fills in command types from that config so you can test strip and matrix animations before calling the API from your project.

Explore Lumyn Studio

Specifications

  • LED channels1 channel
  • Max LEDs320 per channel
  • At full white3 A lights about 50 LEDs. Most animations draw far less, and the board dims itself to stay under its limit.
  • Regulator output3 A (5 V to LEDs)
  • LED protocolWS2812B addressable
  • Module busesI2C, SPI, UART, DIO, and analog
  • Host connectionUSB and UART
  • Configuration storagemicroSD (FAT32)
  • ConfiguratorLumyn Studio (Chrome or Edge)
  • APIWPILib Java and C++ vendordep; Python, C, and C++ SDKs for off-robot hosts

Common questions

ConnectorX or ConnectorX Animate?

Choose ConnectorX when you need one LED channel plus module buses for sensors and custom peripherals. Choose ConnectorX Animate when the project needs four LED channels or a larger LED count.

Power

USB-C is enough for Lumyn Studio setup. For LED output, supply 12 V to the board. The onboard regulator supplies 5 V to connected WS2812B hardware.

The regulator gives 3 A, which lights about 50 LEDs at full white. Most animations draw far less, and the board dims itself to stay under its limit.

microSD card

A FAT32 microSD card is required: ConnectorX keeps its configuration on it. Lumyn Studio saves the configuration to the card over USB, so you leave the card in the board. On firmware 4.4 a new configuration takes effect right away, with no restart.

You can also export config.json from Lumyn Studio and copy it to the card root.

Modules

Built-in firmware support includes VL53L1X distance sensors over I2C, digital inputs, and analog inputs. SPI and UART are available for custom module work. Register modules in Lumyn Studio with IDs that match your API calls.
